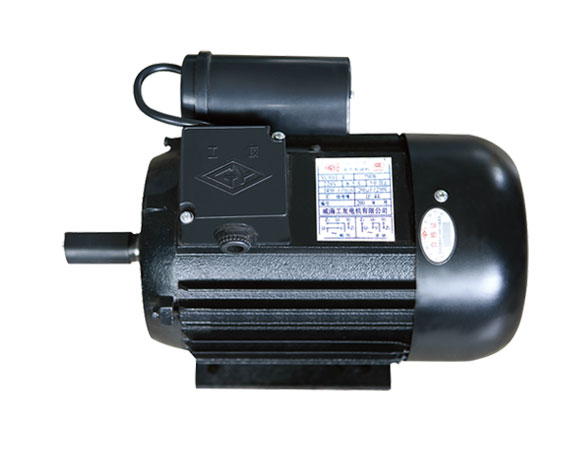

YC Series Capacitor-start Asynchronous Motor
YC Series Capacitor-start Asynchronous Motor
Summarization:
YC series motor is full-close rat-cage single-phase capacitor-start asynchronous motor cooled by fan,The motor is of the characteristic of simple structure,safe and reliable working,easy maintenance,excellent technique guideline and so on.


Working condition:
The motor can work on the rated power continuously under the following condition:the altitude is no more than 1000m and the environmental air temperature is no more than +40℃.
Rated Volt:220V
Rated Frequency:50Hz
Working System:S1
Insulation Grade:E或B(E OR B)
Protection Grade:IP44
Cooling Type:IC 411

Technical data

Type Rated power
(KW)
Rated Volt
(V)
Rated current
(V)
Rated speed
(r/min)
Efficient
(%)
Power factor
(cos¢)
Locked current
(A)
Locked-rotor torque/Rated torque Maximal torque/Rated torque Yawp dB(A)
Synchronous speed 3000r/min 2pole
YC7112 0.18 220 1.89 2800 60 0.72 12 3.0 1.8 70
YC7122 0.25 2.4 2800 64 0.74 15 3.0 70
YC8012 0.37 3.36 2800 65 0.77 21 2.8 75
YC8022 0.55 4.65 2800 68 0.79 29 2.8 75
YC90S-2 0.75 6.09 2800 70 0.80 37 2.5 75
YC90L-2 1.1 8.68 2800 72 0.80 60 2.5 78
YC100L1-2 1.5 11.4 2800 74 0.81 80 2.5 83
YC100L2-2 2.2 16.5 2800 75 0.81 120 2.2 83
Synchronous speed 1500r/min 4pole
YC7114 0.12 220 1.88 1400 50 0.58 9 3.0 1.8 65
YC7124 0.18 2.49 1400 53 0.62 12 2.8 65
YC8014 0.25 3.11 1400 58 0.63 15 2.8 65
YC8024 0.37 4.24 1400 62 0.64 21 2.5 70
YC90S-4 0.55 5.49 1400 66 0.69 29 2.5 70
YC90L-4 0.75 6.87 1400 68 0.73 37 2.5 70
YC100L1-4 1.1 9.52 1400 71 0.74 60 2.5 73
YC100L2-4 1.5 12.5 1400 73 0.75 80 2.5 73
