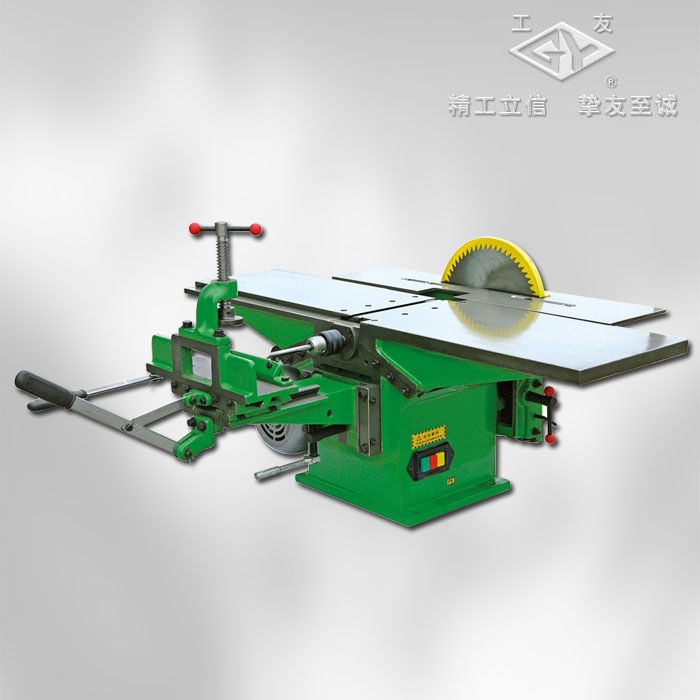

| Technical Specification | Unit | ML292E5 |
| Main spindle speed | r/min | 3580 |
| Max. planing width | mm | 200 |
| Max.planing depth | mm | 3 |
| Max. sawing thickness | mm | 80 |
| Mortising range | mm | 5-13 |
| Max. mortise depth | mm | 120 |
| Planing blade | mm | 210×3×25 |
| Circular sawblade | mm | 250×1.6×25 |
| Emery wheel for blade | mm |
B50×32×13 |
| Emery wheel for sawblade | mm | PDX1125×10×18 |
| V-belt | mm | A-725 |
| Motor power | kW/V | 1.1/ 220 |
| Overall dimensions | mm | 1000×910×480 |
| Net.weight | kg | 105 |
